Description

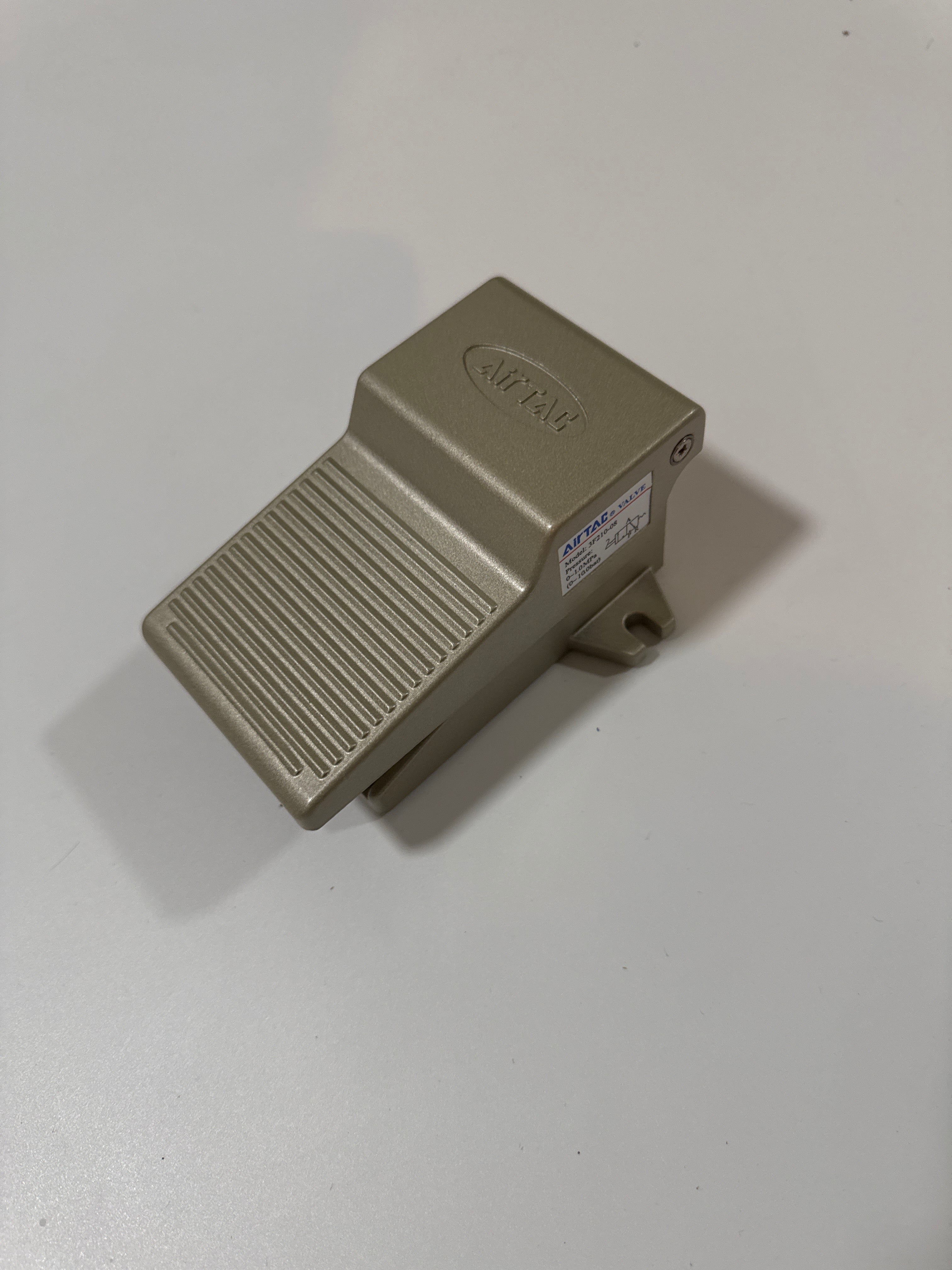

foot pedal valve Airtac 3F210-08: Pneumatic pedal. 3 waySpecifications: three two foot valve Nozzle caliber: 1 4" Type: Standard Tooth type: PT tooth Specifications 1. Model: 3F21008 2. Working medium: air (filtered by filter screen above 40m), actuation mode: pedal control direct acting normally closed type 3. Nozzle caliber: PT1 4, number of positions: three, two 4. Use pressure range: 0~0. 1MPa(0~145psi), Guaranteed pressure resistance: 1. 5MPa(215psi) 5. Working temperature: 20~70 , body material:
Specifications: three two foot valve Nozzle caliber: 1/4" Type: Standard Tooth type: PT tooth
Specifications
1. Model: 3F21008
2. Working medium: air (filtered by filter screen above 40μm), actuation mode: pedal control direct-acting normally closed type
3. Nozzle caliber: PT1/4, number of positions: three, two
4. Use pressure range: 0~0.1MPa(0~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)
5. Working temperature:-20~70 ℃, body material: aluminum alloy, lubrication: no need
6. Take over the tooth type G teeth, NPT teeth optional.
Internal structure: 1. Axle pin/2. Countersunk screws/3. Fixed iron/4. Axle core/5. Pedal/6.O Order/7. Noumenon/8. Spring/9.E-ring/10. Spring seat/11. Spring/12. Round head screws/13. Base/14. Foot Pad/15. Round head screws/16. Buckle
Spring Accessories :3F210 Spring
Click to download Airtac product catalog
Product Features
1. Direct-acting normally closed type;
2.3F series is aluminum pedals, 3FM series is plastic pedals, direct-acting horizontal, compact structure;
3. If the commutation time is long, the lock valve can be selected;
4. The clamping structure is stable and reliable, easy to unlock, but limited by the size of the structure, can not withstand frequent strong impact.
The Airtac 3F/3FM valve series is a functional alternative to the SMC VM230-02-40 series.
